Aluminium foil/cable aluminium foil
Application

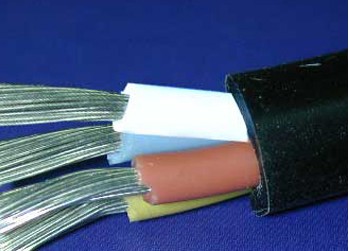

Cable wrapping
Specification
1)Thickness: 0.0065-0.050mm
3)Alloy: 8011, 1235, 1145, 8079
4)Temper: O
5)Treatment: Mill Finish
7)Inner Core Materials: Steel, Aluminum Core
8)Type: Roll
9)Standard: GB/T3198-2003
Mechanical Properties
|
Alloy |
Temper |
Gauge(mm) |
Tensile testing |
|
Tensile Strength(Mpa) |
ElongationA/% (more than) |
|
8011
1235
1145
8079 |
O |
0.0065-0.050 |
40-80 |
¡Ý2.0 |
Typical gauge (T)
|
Gauge range |
0.0065-0.050mm |
Product Tolerance on Size
|
Dimension |
Gauge(%) |
Width(mm) |
|
Tolerance |
+/-5 |
+1, -0 |
Pin Requirement
|
Category |
Pin Counts£¨pcs/©O£©less than |
|
Gauge(mm£© |
Aluminum Foil for Cigarette Packing |
|
0.0065 |
400 |
|
0.007 |
300 |
|
0.0075 |
50 |
|
0.009 |
30 |
|
£¾0.009-0.011 |
20 |
|
£¾0.011-0.015 |
10 |
|
£¾0.015-0.020 |
5 |
|
£¾0.020-0.050 |
0 |
