Aluminium Coated Coil Your current position:Home > Information Centre

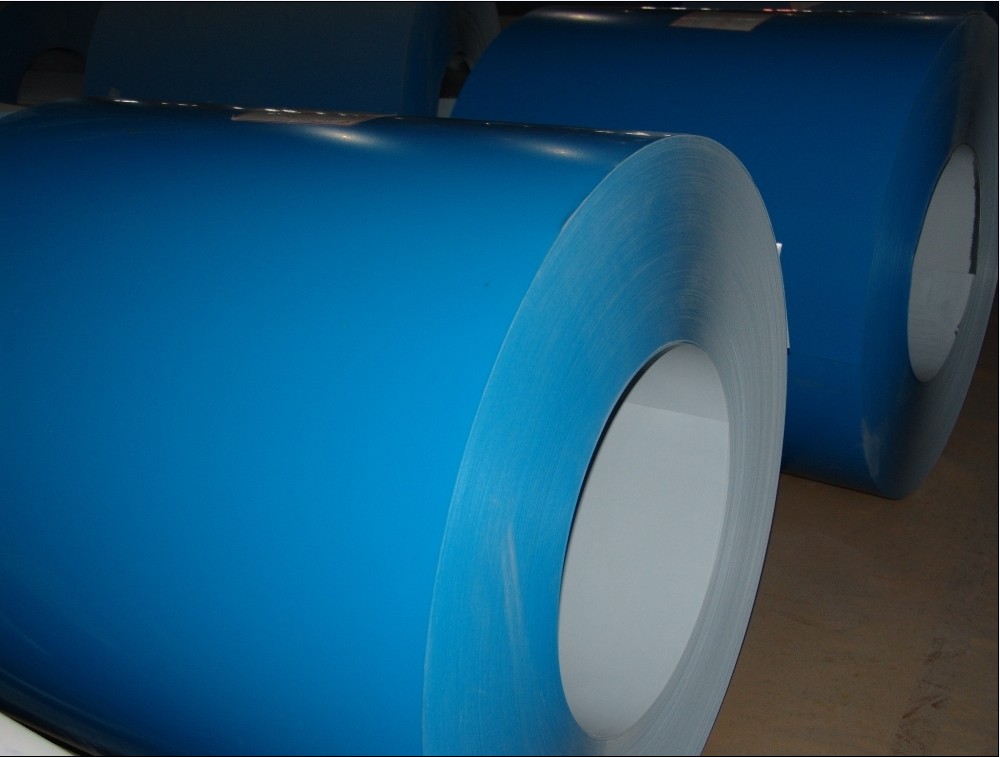

NANO Aluminium Coated Coil

Aluminium coated coil/aluminium colour coil/nano coated aluminium coil
Nanometer PVDF Coating, which different to traditional PVDF (a clear coating). It contains nanometer elements which protect the panel from pollution. Because nanometer has self-cleaning effects, it is easy to rid of dust and pollution with rain water.
Characteristic:
1£©Excellent weather-proof durability
2£©Anti-ultraviolet
3£©High erosion resistance
4£©Stable color and gloss
5£©Good mechanical processing performance
6£©Abrasion resistance
7£©Anti-impact
8£©High flexibility
Specifications:

Grade
1050£¨1060,1070, 1100, 1200, 2024,3003, 3004,3005, 3105, 5005,5052 5182,5754,8011 etc.
Thickness
0.1~1.5mm
Width
100~2200mm
Application
Decorative Materials
Surface Treatment
Coated
Temper
O - H112
Hardness
More than 2H
Yield (°› MPa)
160
Temper
O - H112
Ultimate Strength (°› MPa)
175
Elongation (°› %)
6
Packing material
Moisture-proof agent, steel tape bundle, wooden pallet, brown paper
Method
Vertical( eye to sky) or horizontal( eye to wall)
Standard spec
1000mm xC, 1200mm xC etc
Shipping
Container Loading or Bulk Pack

Application:
PVDF color coated aluminum coil is the best & high class materials for top coils of ACP, aluminum sheets and honeycomb panels. Its laminated products are widely used for the decoration of the airport, exhibition halls, commercial buildings, star hotels and the curtains wall of high®Cclass building.
