Fireproof Aluminium Composite Panel

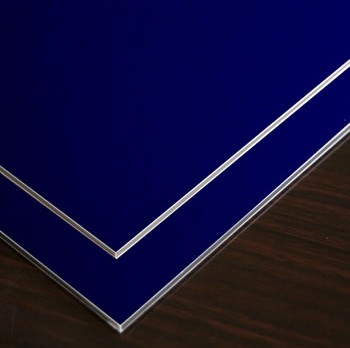

Fireproof aluminum composite panel
Introduction
Fireproof aluminum composite panel is made of fireproof plastic core with two layers of aluminum shees, it is one kind of new decorative material. It is available in both polyester and PVDF coating. The key property of retardant inflammation comes from the core of retardant mineral. Our company devote the research and development energy to introducing the environmental protection core material that is a non-halogen, low smoke, non-flammable modified polyethylene. It is one kind of new decorative material and its fireproof feature can reach Class B1 grade with the test of GB8624. It also is green material, as there is no harmful gas during burning.
Specification

Panel Thickness(mm)
2mm-8mm
Aluminium Skin Thickness(mm)
0.08mm-0.5mm
Width(mm)
1220mm-2000mm
Length(mm)
2440mm-8000mm

Feature
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
°ý Constructional exterior curtain walls;
°ýDecorative renovation for storey-added old buildings;
°ý Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
°ý Advertisement board, display platforms and signboards;
°ýWallboard and ceilings for tunnels;
°ý Raw materials in industrial purpose;
°ýMaterials used for vehicle and boat.
Level and name of combustion properties

Degree
Iitem
Degree
Item
A
No-Combustion
B2
Combustion
B1
Hard- Combustion
B3
Combustible
Degree
Material
The combustion performance indicators

No-Combustion
Class A Material
According GB/T8625 test, the average length of the remaining °‹ 35 cm (including any residual specimen length> 20 cm) for each test and the average flue gas temperature peak °‹ 125 °„ C, no specimen back burner the scene;
According GB/8627 test, their smoke density levels (SDR) °‹ 15;
According to GB/T14002 and GB/T14403 test, its calorific value °‹ 4.2 MJ / kg, and the specimen thermal emission per unit area °‹ 16.8 MJ/m2; toxic materials combustion flue gas of the entire non-lethal concentration of °› 25 mg / L
Hard Combustion
Class B1 Material
According GB/T8626 test, its combustion properties should be met GB/T8626, and does not allow any dropping of combustion burn the filter paper;
According GB/T8625 test, the average of each specimen remaining length °› 15 cm (including any residual specimen length> 0 cm), and the average peak temperature of gas °‹ 200 °ś in each test.
According GB/T8627 test, their smoke density levels (SOR) °‹ 75



Contrast of fire-resist performance in different countries

Country
China
Germany
USA
France
UK
Japan
Russia
Norms
GB/T8627
DIN 4102
ASTM E84
BS 476
NFF 16-101
JIS K6911
30244-94
Few
A
A1,A2
NC
0
MO
1
T1
Minor
B1
B1
A
1
M1,M2
2
T2
Normal
B2
B2
B,C
2.3
M3
3
T3
Serious
B3
B3

4
M4,M5
-
-

Class B1 Test Report

No.
Test Item
Ref. Standard
Technical Index
Result





1
Minimum remaining length of combustion, mm
GB/T8625-88
>0
620
2
Average remaining length of combustion, mm
GB/T8625-88
°›150
652
3
Smoke temperature °ś
GB/T8625-88
°‹200
133
4
Height of smoke dust, mm
GB/T8625-88
°‹150
15
