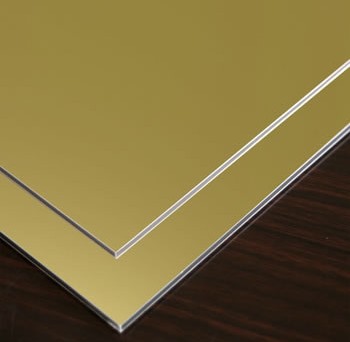

NANO Aluminium Composite Panel

Aluminium composte panel/Nano Aluminium composite panel
Introduction
Nano ACPs adopt unique PVDF of metal construction paint and Nanometer additive, activates with tetrafluoroethylene polymer with long-chain acrylic, and goes into the deep coating. Through the advanced technology of coating processing, the product could keep the Nanometer article long-term stability. And this invention solves Nanometer article not durable and easy dropping shortcomings of the Nanometer technology. Thus the organic Nanometer coating of dirty resistance, self-cleaning comes into a practical moment.
Specification

Panel Thickness(mm)
2mm-8mm
Aluminium Skin Thickness(mm)
0.08mm-0.5mm
Width(mm)
1220mm-2000mm
Length(mm)
2440mm-8000mm

Features
-Excellent easy-cleaning
-Pollution resistance
-Oil resistance
-Good Friction Resistance
-Strong Acid & Alkali Resistance
-Outstanding weather resistance
Applications:
”ł Constructional exterior curtain walls;
”łDecorative renovation for storey-added old buildings;
”ł Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
”ł Advertisement board, display platforms and signboards;
”łWallboard and ceilings for tunnels;
”ł Raw materials in industrial purpose;
”łMaterials used for vehicle and boat.
Property comparison between NANO-PVDF coating and PVDF coating

Coating Type
NANO Coating
PVDF Coating
Paint Particle
0.001micron-0.03micrion
0.3micron
Pollution Resistance
Dust hardly sticks on the panel
Dust sticks easily
Easy-cleaning
Dust goes away with bead
NIL
Friction Resis
Over 10000times
Several thousands times
Acid Resistance
5% HCI,240hrs
24hrs
Alkali Resistance
5% NAOH,240hrs
24hrs
Oil Resistance
20# machine oil,240hrs
24hrs
Weathering
Both paints have prominent feature of weather proofing and color retention
