Aluminium composite panel
Introduction

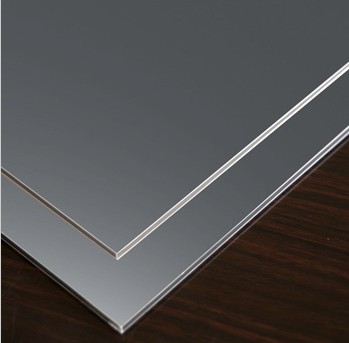

LANREN PVDF Aluminium composite panel is consisted of 3 layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG.VALSPAR of USA and Becker of Sweden.
Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality PVDF aluminum composite panels. Our PVDF aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate.Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.
Specification
|
Panel Thickness(mm) |
2mm-8mm |
|
Aluminium Skin Thickness(mm) |
0.08mm-0.5mm |
|
Width(mm) |
1220mm-2000mm |
|
Length(mm) |
2440mm-8000mm |
Feature
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
¡ù Constructional exterior curtain walls;
¡ù Decorative renovation for storey-added old buildings;
¡ù Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
¡ù Advertisement board, display platforms and signboards;
¡ù Wallboard and ceilings for tunnels;
¡ù Raw materials in industrial purpose;
¡ù Materials used for vehicle and boat.
SGS Test For 4mm PVDF A.C.P
|
Items |
Standard |
Results |
|
Appearance |
Clean surface without swell,flaws.scrath and aberration |
pass |
|
|
Length: ¡À 3mm |
0mm~+2mm |
|
|
Width: ¡À 2mm |
0mm~+1mm |
|
|
Thickness: 0. 2mm |
0mm~+0.14mm |
|
Deviation of dimension |
Deviation of diagonal: ¡Ü 5mm |
1mm |
|
|
Out of straight at sides: ¡Ü 1mm/m |
0.2mm/m |
|
|
Warp: ¡Ü 5mm/m |
1mm/m |
|
Thickness of coating |
¡Ý 25um |
29u (av.30) |
|
Deviation of luster |
¡Ü 10 |
2.1 (av.28.0) |
|
Hardness of pencil |
¡Ý HB |
3H |
|
Toughness of coating |
¡Ü 2T |
2T |
|
Adhesive |
Not less than Grade1 |
Squaring off method of Grade 0 Grade 1marking method of rolling line |
|
Impact strength |
50Kg.cm Without paint off and crack |
Pass |
|
Boiling water resistance |
(Boiling for 2h without change) |
Unchanged |
|
Acid resistance |
Immerse surface with5%HCI(v/v)for 48h without change |
Unchanged |
|
Alkali resistance |
Immerse surface with5%NaOH(m/m)for 48h without change |
Unchanged |
|
Oil resistance |
Immerse surface with 20# engine oil for 48h without change |
Unchanged |
|
Solvent resistance |
Clean 100 times with butanone without change |
Bottom unrevealed |
|
Cleaning resistance |
¡Ý 10000 times without change |
Unchanged |
|
Abrasion resistance |
¡Ý 5L/um |
5.33L/um |
|
Contamination resistance |
¡Ü 15% |
0.078 |
|
Density of surface |
Specified value: ¡À 0.5Kg/m2 |
5.32Kg/m2 |
|
Bend strength |
¡Ý 100Mpa |
121Mpa |
|
Flexuous modulus of elasticity |
¡Ý 2.0¡Á10 4 Mpa |
3.12 ¡Á 104 Mpa |
|
Through resistance |
¡Ý 9.0kN |
9.94kN |
|
Cutting strenght |
¡Ý 28.0Mpa |
32.0Mpa |
|
180 o peel strength |
¡Ý 7.0N/mm |
11.2N/mm |
|
Resistance to change of temperature |
-40 0C~800C 20 cycles without change |
Unchanged |
|
Heat deformation temperature |
¡Ý 950C |
1200C |
|
Coefficient of heat expansion |
¡Ü 4.00¡Á10 -50C -1 |
1.98 ¡Á 10 -50C -1 |
|
Salt haze resistance (3000h) |
Not less than Grade2 |
Grade 1 |
|
Artificial resistance aberration(200h) |
¡Ü 3.0 |
1.24 |
|
Aging resistance Out of light(200h) |
Not less than Grade2 |
Grade 1 |
|
other aging characteristic(200h) |
Grade 0 |
Grade 0 |
