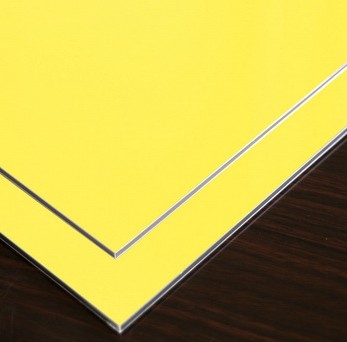

PE Aluminium Composite Panel

Aluminium composite panel

The panel consists of  two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PE(Polyester) paint and the other with service coating or mill finish.Because of its excellent flexibilty,sound insulation and other features , the panel is widely used as interior decoration materials in the world.

Specification

Panel Thickness(mm)

2mm-8mm

Aluminium Skin Thickness(mm)

0.08mm-0.5mm

Width(mm)

1220mm-2000mm

Length(mm)

2440mm-8000mm

Feature

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

Applications

Constructional exterior curtain walls;

Decorative renovation for storey-added old buildings;

Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

Advertisement board, display platforms and signboards;

Wallboard and ceilings for tunnels;

Raw materials in industrial purpose;

Materials used for vehicle and boat.

SGS Test report for 3mm polyester A.C.P

Items
Standard index of quality product
Result
Appearance
Clean surface without swell,flaws.scrath and aberration
pass

aberration


Length: 3mm
0mm~+1mm

Width: 2mm
0mm~+1mm

Thickness: 0. 2mm
0mm~+0.14mm
Deviation of dimension
Deviation of diagonal: 5mm
0mm

Out of straight at sides: 1mm/m
0.2mm/m

Warp: 5mm/m
1mm/m
Thickness of coating
16um
17um av.18
Deviation of luster
10
2.6 av.20
Hardness of pencil
HB
2H
Toughness of coating
3T
1T
Adhesive
Not less than Grade1
Squaring off method of Grade 0 Grade 1marking method of rolling line
Impact strength
50Kg.cm Without paint off and crack
Pass
Boiling water resistance
(Boiling for 2h without change)
Unchanged
Acid resistance
Immerse surface with2%HCI(v/v)for 24H without change
Unchanged
Oil resistance
Immerse surface with 20# engine oil for 24h without change
Unchanged
Solvent resistance
Clean 100 times with dimethylbenzene without change
Bottom unrevealed
Cleaning resistance
10000 10000 times without change
Unchanged
Abrasion resistance Density of surface
Specified value: 0.5Kg/m 2
3.63Kg/m 2
Bend strength
60Mpa
79.6Mpa
Flexuous modulus of elasticity
1.510 4 Mpa
2.19 10 4 Mpa
Through resistance
5.0kN
6.25kN
Cutting strength
20.0Mpa
25.7Mpa
180 o peel strength
5.0N/mm
6.2N/mm
Resistance to change of temperature
-40 o C~80 o C 20 cycles without change
Unchanged
Heat deformation temperature
95oC
116 o C
Coefficient of heat expansion
4.0010 -5 oC -1
2.47 10 -5 o C -1
